Direct Air Cooled Condenser (ACC)

It is a cooling system in which the exhaust steam of steam turbine is directly condensed into water through the tube bundle of air cooled condenser using air as cooling medium.
It is suitable for power plants in water-deficient regions or power plants with high final temperature of condensed medium.
Operating Principle

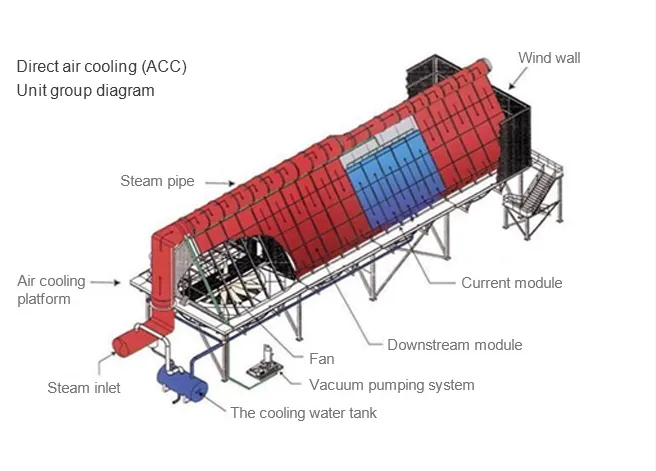

It is a cooling system in which the exhaust steam of steam turbine is directly condensed into water through the tube bundle of air cooled condenser using air as cooling medium. Its heat exchange system mainly includes: air cooled condenser, air supply system, support structure, exhaust duct system, condensate collection system, vacuum-pumping system, cleaning system, electrical system and instrument control system.

Product Structure
Main components

Main Components of Direct Air Cooled Condenser System

1. Air Cooled Condenser

2. Air Supply System

3. Exhaust Duct System

4. Condensate Collection System

5. Vacuum-pumping System

6. Cleaning System

7. Electrical System

8. Instrumentation and Control System

9. Support Structure

Direct Air Cooled Condenser
Product Features
  • 01

    The discharged steam condenses in the exhaust duct, and the latent heat is discharged by a large amount of air driven by the fan.

  • 02

    No water consumption (except for cleaning exhaust duct bundle).

  • 03

    It works well in regions with low average temperature.

  • 04

    Compared with water cooling, air can be obtained free of charge, air corrosivity is low, and the operation and maintenance cost of air cooling is relatively low.



Advantages

1. Its single-row large flat tube bundle features excellent heat transfer performance. Its main features include high heat transfer efficiency, strong corrosion resistance, high strength for transportation and cleaning, and good antifreeze performance.

2. Technical advantages: Longhua Technology Group is a National High-tech Enterprise, acting as Research Center of Henan Industrial Heat Transfer and Energy Saving Equipment Engineering Technology, Academician Workstation of Henan Industrial Heat Transfer and Energy Saving Technology, as well as Henan Enterprise Technology Center. It owns professional technical team and technical software, etc.

3. Manufacturing advantages: It has the latest single-row tube production line in China, including numerical control fin production equipment, numerical control tunnel brazing equipment, tube bundle welding equipment, and pressure test equipment, which are controlled by the latest computer hardware configuration and professional software. It can effectively improve production efficiency and control product quality, with an annual production capacity of 4x600 MW air cooling tube bundle.

4. Service advantages: The company has a competent service team for on-site installation guidance, operation debugging and after-sales service. They are always ready to provide clients with professional technical guidance and services, timely handle the problems found in operation, perform all quality assurance within the warranty period in strict accordance with the contract. The company can provide all-round, whole-process and life-cycle technical services with reliable system design and professional team to ensure the economic operation of the air cooling system and create value and profit for clients.
